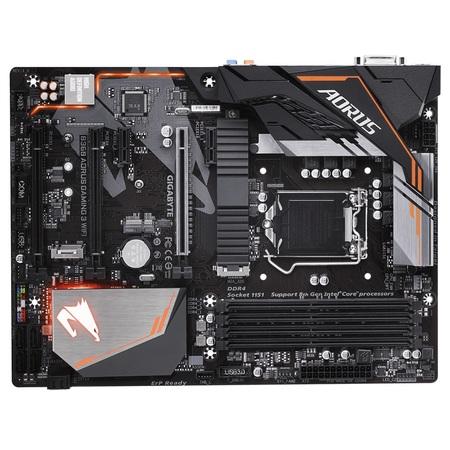

GIGABYTE MB Sc LGA1151 B360 AORUS GAMING 3 WIFI, Intel B360, 4xDDR4, VGA, Intel CNVi WIFI ready

1. Support for 8th Generation Intel Core™ i7 processors/Intel Core™ i5 processors/ Intel Core™ i3 processors/Intel Pentium processors/Intel Celeron processors in the LGA1151 package
2. L3 cache varies with CPU

1. Intel B360 Express Chipset

1. 4 x DDR4 DIMM sockets supporting up to 64 GB of system memory
2. Dual channel memory architecture
3. Support for DDR4 2666/2400/2133 MHz memory modules
4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
6. Support for Extreme Memory Profile (XMP) memory module
   * To support 2666 MHz or XMP memory, you must install an 8th Generation Intel Core™ i7/i5 processor.

(Please refer "Memory Support List" for more information.)

1. 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
   * The DVI-D port does not support D-Sub connection by adapter.
2. 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz
   * Support for HDMI 1.4 version and HDCP 2.2.

Maximum shared memory of 1 GB

1. Realtek ALC892 codec
2. High Definition Audio
3. 2/4/5.1/7.1-channel
4. Support for S/PDIF Out

1. Intel GbE LAN chip (10/100/1000 Mbit)

1. 1 x PCI Express x16 slot, running at x16 (PCIEX16)
   * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
2. 1 x PCI Express x16 slot, running at x4 (PCIEX4)
   * The PCIEX4 slot shares bandwidth with the PCIEX1_2/PCIEX1_3 slots. The PCIEX4 slot operates at up to x2 mode when the PCIEX1_2 or PCIEX1_3 slot is populated.
3. 1 x PCI Express x16 slot, running at x1 (PCIEX1_3)
4. 2 x PCI Express x1 slots (PCIEX1_1, PCIEX1_2)
   (All of the PCI Express slots conform to PCI Express 3.0 standard.)
5. 1 x M.2 Socket 1 connector for an Intel CNVi wireless module only (CNVI)
   * B360 AORUS GAMING 3 WIFI includes the GC-CI22M_A CNVi wireless module.
   * The CNVi connector shares bandwidth with the USB 2.0/1.1 port on the back panel (the one below the LAN port). When a Wi-Fi module is populated in the CNVi connector, the USB 2.0/1.1 port becomes unavailable.

1. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support) (M2A_32G)
2. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x2 SSD support) (M2P_16G)
3. 6 x SATA 6Gb/s connectors
   * Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors.

Intel Optane™ Memory Ready

1. Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies

1. 1 x USB 3.1 Gen 2 Type-A port (red) on the back panel
2. 1 x USB Type-C™ port on the back panel, with USB 3.1 Gen 1 support
3. 4 x USB 3.1 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
4. 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB headers)

1. 1 x 24-pin ATX main power connector
2. 1 x 8-pin ATX 12V power connector
3. 1 x CPU fan header
4. 1 x water cooling CPU fan header
5. 2 x system fan headers
6. 1 x system fan/water cooling pump header
7. 2 x digital LED strip headers
8. 2 x digital LED strip power select jumpers
9. 2 x RGB (RGBW) LED strip headers
10. 6 x SATA 6Gb/s connectors
11. 2 x M.2 Socket 3 connectors
12. 1 x front panel header
13. 1 x front panel audio header
14. 1 x USB 3.1 Gen 1 header
15. 1 x USB 2.0/1.1 header
16. 1 x S/PDIF Out header
17. 1 x Thunderbolt™ add-in card connector
18. 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
19. 1 x serial port header
20. 1 x Clear CMOS jumper

1. 1 x PS/2 keyboard/mouse port
2. 1 x DVI-D port
3. 1 x HDMI port
4. 1 x USB 3.1 Gen 2 Type-A port (red)
5. 1 x USB Type-C™ port, with USB 3.1 Gen 1 support
6. 2 x USB 3.1 Gen 1 ports
7. 4 x USB 2.0/1.1 ports
8. 1 x RJ-45 port
9. 6 x audio jacks

1. iTE I/O Controller Chip

1. Voltage detection
2. Temperature detection
3. Fan speed detection
4. Water cooling flow rate detection
5. Overheating warning
6. Fan fail warning
7. Fan speed control

1. 2 x 128 Mbit flash
2. Use of licensed AMI UEFI BIOS
3. Support for DualBIOS™
4. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

1. Support for APP Center
   * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
   3D OSD
   @BIOS
   AutoGreen
   Cloud Station
   EasyTune
   Fast Boot
   Game Boost
   ON/OFF Charge
   Platform Power Management
   RGB Fusion
   Smart Backup
   Smart Keyboard
   Smart TimeLock
   Smart HUD
   System Information Viewer
   USB Blocker
   V-Tuner
2. Support for Q-Flash
3. Support for Xpress Install

1. Norton Internet Security (OEM version)
2. cFosSpeed

1. Support for Windows 10 64-bit

1. ATX Form Factor; 30.5cm x 22.5cm

1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.
