GIGABYTE W480 VISION D

GIGABYTE W480 VISION D - W480 VISION D
Doprava po ČR zdarma
Ilustrační obrázky
Popis
Socket (patice):Socket 1200; Chipset:Intel; Technologie paměti RAM:DDR4; Formát základní desky:ATX; Podpora RAID:1, 5, 10; PCI Express x16:Více než 1; 3.5mm Jack; Bezdrátové připojení:Wi-Fi; Integrovaná LAN karta:1; Integrovaná grafická karta:Ano (CPU); Další rozhraní:DP port, WiFi
Zeptejte se
9 155 Kč
7 566,12 Kč bez DPH
Toto zboží nadále není možné koupit. Prohlédněte si podobné produkty zde.
Výrobní číslo:
W480 VISION D
EAN:
4719331809478
Náš kód:
1128899
Popis Parametry

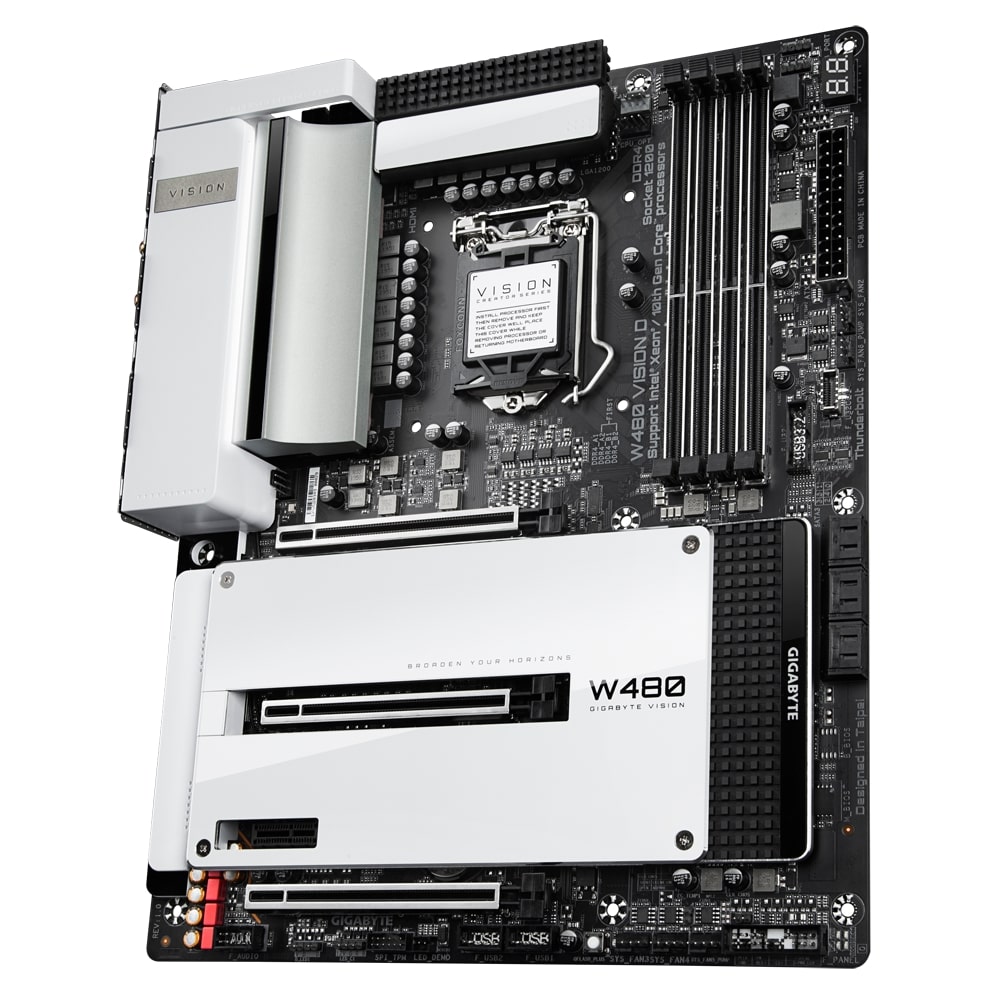

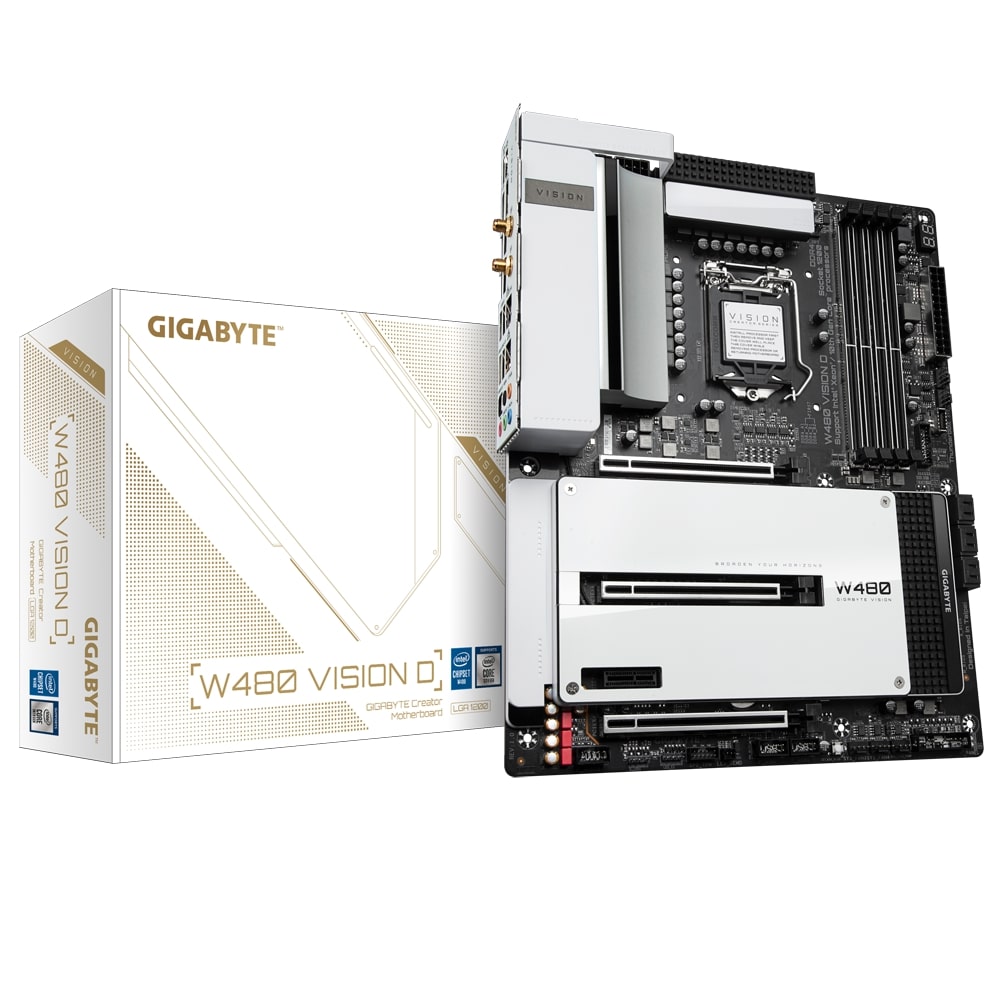

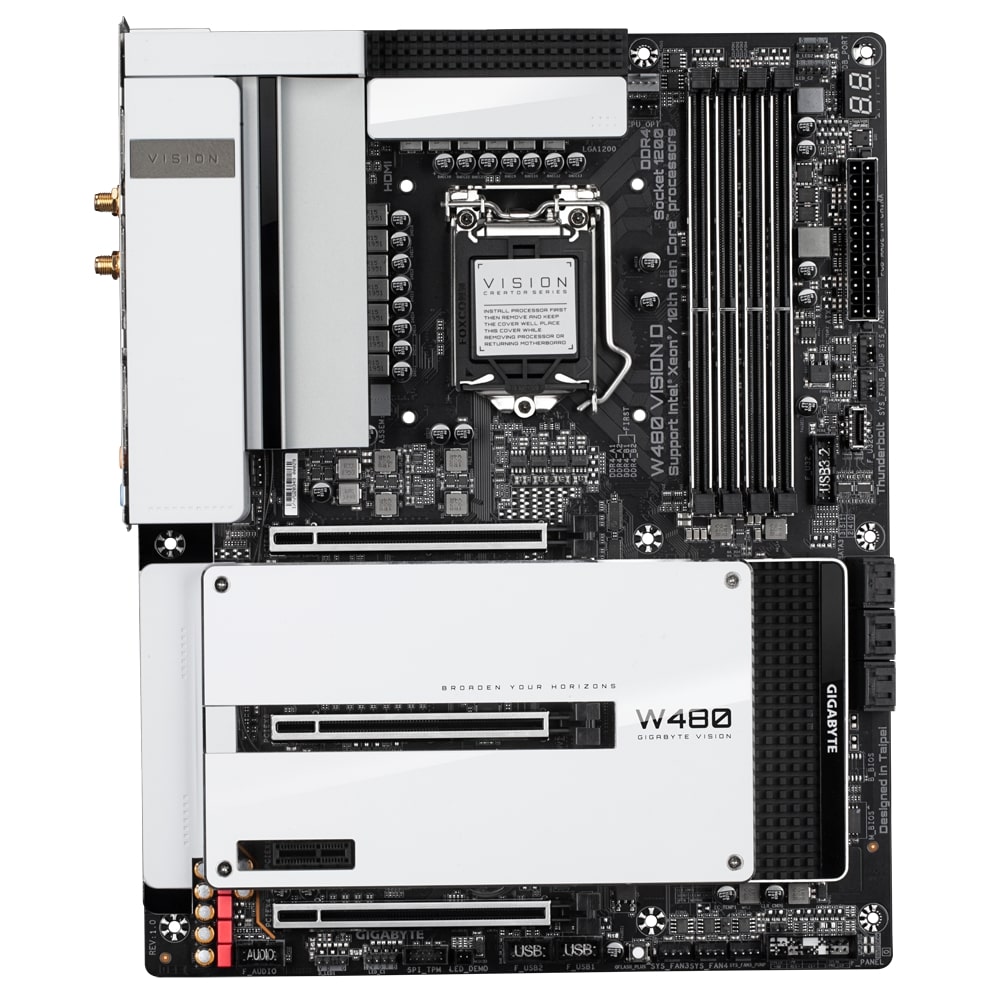

W480 VISION D (rev. 1.0)

Intel W480 Creators Motherboard with enhanced power design, effective cooling solution, DDR4 ECC & Non-ECC memory, Thunderbolt™ 3, Intel Wi-Fi 6 802.11ax and dual Intel LAN with cFosSpeed, 3 PCIe 3.0 x16 slots, Triple NVMe PCIe x4 M.2, Front USB 3.2 Gen 2 Type-C™ Header

  • Powerful performance with Intel Xeon W processors and support 10th Gen Intel Core™ series processors
  • Reliability ensuring by DDR4 ECC & Non-ECC memory with 4 physical DIMM slots
  • Multi-graphics configurations offer better graphics performance
  • NVIDIA QUADRO Professional Graphics Supports
  • The limitless connectivity by Thunderbolt™3
  • High-bandwidth and low-latency network support by Intel 2.5GbE + GbE Dual LAN with cFosSpeed
  • Intel Wi-Fi 6 802.11ax makes latency a thing of the past
  • Effective cooling solution design for the better thermal dissipation
  • Smart Fan 5 features hybrid fan headers and numerous temperature sensors for fan mode configuration
  • Triple Ultra-Fast M.2 with PCIe Gen3 x4 interface with Thermal Guards
  • Comprehensive connectivity with front USB3.2 Gen 2 Type-C™ Header
  • Q-Flash Plus Updates BIOS without Installing the CPU, Memory and Graphics Card


TECHNICAL SPECIFICATIONS

CPU
  1. LGA1200 package: Intel Xeon W series processors
    10th Generation Intel Core™ processors/Intel Pentium processors/ Intel Celeron processors
  2. L3 cache varies with CPU
    (Please refer "CPU Support List" for more information.)
Chipset Intel W480 Express Chipset
Memory
  1. Intel Xeon W-1290/W-1270 series processors/Intel Core™ i9/i7 processors: Support for DDR4 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2933 / 2800 / 2666 / 2400 / 2133 MHz memory modules
  2. Intel Xeon W-1250 series processors/Intel Core™ i5/i3/Pentium/Celeron processors:
    Support for DDR4 2666/2400/2133 MHz
  3. 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
  4. Dual channel memory architecture
  5. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules
    * To support ECC, you must install an Intel Xeon processor.
  6. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  7. Support for Extreme Memory Profile (XMP) memory modules
    (Please refer "Memory Support List" for more information.)
Onboard Graphics

Integrated Graphics Processor+Intel Thunderbolt™ 3 Controller:

  1. 2 x Intel Thunderbolt™ 3 connectors (USB Type-C™ ports), supporting DisplayPort and Thunderbolt™ video outputs and a maximum resolution of 5120x2880@60 Hz with 24 bpp
    * Because of the limited I/O resources of the PC architecture, the number of Thunderbolt™ devices that can be used is dependent on the number of the PCI Express devices being installed. (Refer to Chapter 1-7, "Back Panel Connectors," for more information.)
    * Support for DisplayPort 1.4 version, HDCP 2.3, and HDR.

Integrated Graphics Processor-Intel HD Graphics support:

  1. 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz
    * Support for HDMI 1.4 version and HDCP 2.3.
    Maximum shared memory of 512 MB
Audio
  1. Realtek ALC1220-VB code

* The back panel line out jack supports DSD audio.

  1. Support for DTS:X Ultra
  2. High Definition Audio
  3. 2/4/5.1/7.1-channel
  4. Support for S/PDIF Out
LAN 1 x Intel 2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit)(LAN2)
1 x Intel GbE LAN chip (1 Gbit/100 Mbit) (LAN1)
Wireless Communication module

Intel Wi-Fi 6 AX201

  1. WIFI a, b, g, n, ac with wave 2 features, ax, supporting 2.4/5 GHz Dual-Band
  2. BLUETOOTH 5
  3. Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
    * Actual data rate may vary depending on environment and equipment.
Expansion Slots 1 x PCI Express x16 slot, running at x16 (PCIEX16)
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
1 x PCI Express x16 slot, running at x8 (PCIEX8)
* The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated, the PCIEX16 slot operates at up to x8 mode.
1 x PCI Express x16 slot, running at x4 (PCIEX4)
* The PCIEX4 slot shares bandwidth with the M2P_SB connector. The PCIEX4 slot operates at up to x2 mode when a PCIe SSD is installed in the M2P_SB connector.
1 x PCI Express x1 slot
(All of the PCI Express slots conform to PCI Express 3.0 standard.)
Supports up to ASPM L1.2 power management protocols.
Multi-Graphics Technology Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies
Storage Interface 1 x M.2 connector (Socket 3, M key, type 2280/22110 SATA and PCIe x4/x2 SSD support) (M2A_CPU)
1 x M.2 connector (Socket 3, M key, type 2280/22110 SATA and PCIe x4/x2 SSD support) (M2M_SB)
1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe x4/x2 SSD support) (M2P_SB)
6 x SATA 6Gb/s connectors
Support for RAID 0, RAID 1, RAID 5, and RAID 10
* Refer to "1-8 Internal Connectors," for the installation notices for the PCIEX4, M.2, SATA connectors.
Intel Optane™ Memory Ready
M.2 connectors support up to ASPM L1.2 PCIe power management protocols.
USB

Chipset+Intel Thunderbolt™ 3 Controller:
2 x USB Type-C™ ports on the back panel, with USB 3.2 Gen 2 support

Chipset:
1 x USB Type-C™ port with USB 3.2 Gen 2 support, available through the internal USB header
2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
2 x USB 3.2 Gen 1 ports available through the internal USB header
2 x USB 2.0/1.1 ports on the back panel

Chipset+USB 3.2 Gen 1 Hub:
4 x USB 3.2 Gen 1 ports on the back panel

Chipset+USB 2.0 Hub:
4 x USB 2.0/1.1 ports available through the internal USB headers
Internal I/O Connectors
  1. 1 x 24-pin ATX main power connector
  2. 1 x 8-pin ATX 12V power connector
  3. 1 x 4-pin ATX 12V power connector
  4. 1 x CPU fan header
  5. 1 x water cooling CPU fan header
  6. 4 x system fan headers
  7. 2 x system fan/water cooling pump headers
  8. 2 x addressable LED strip headers
  9. 2 x RGB LED strip headers
  10. 3 x M.2 Socket 3 connectors
  11. 6 x SATA 6Gb/s connectors
  12. 1 x front panel header
  13. 1 x front panel audio header
  14. 1 x USB Type-C™ header, with USB 3.2 Gen 2 support
  15. 1 x USB 3.2 Gen 1 header
  16. 2 x USB 2.0/1.1 headers
  17. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
  18. 2 x temperature sensor headers
  19. 1 x Clear CMOS jumper
  20. 1 x Q-Flash Plus button

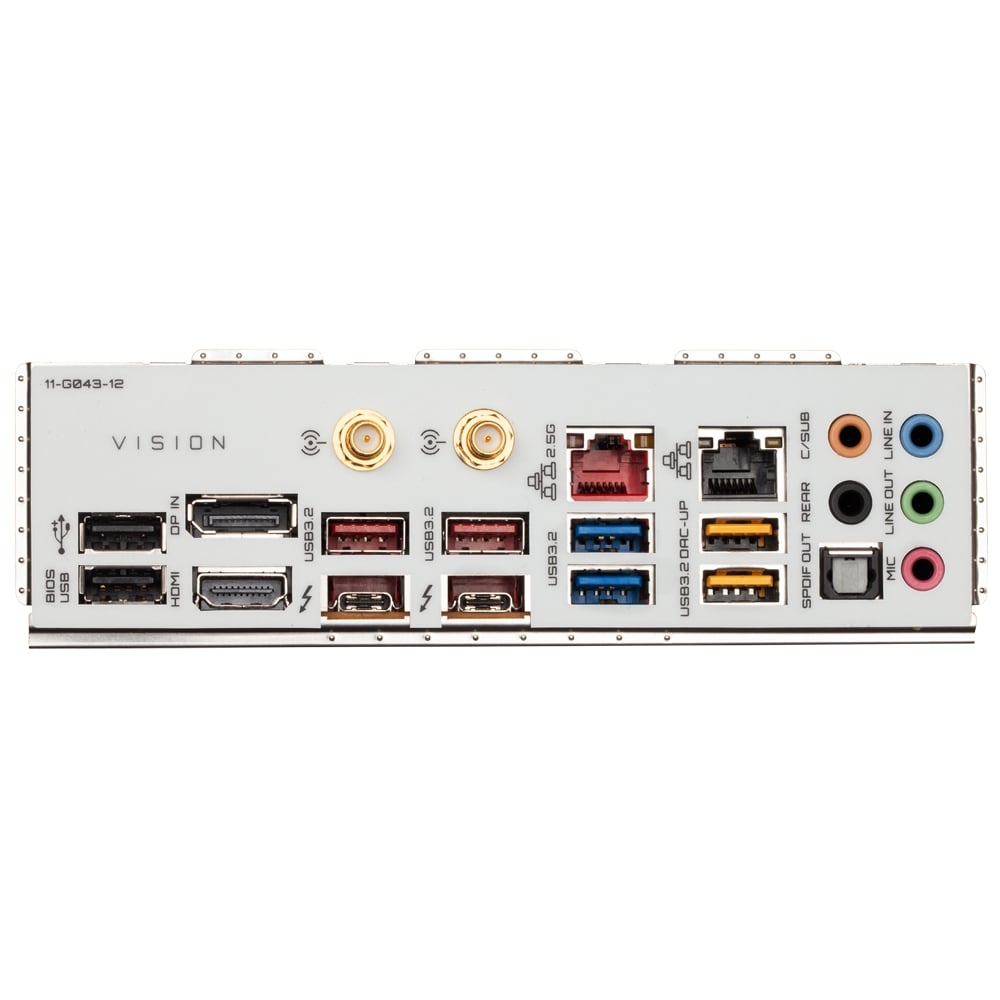

Back Panel Connectors
  1. 1 x DisplayPort In port
  2. 2 x Thunderbolt™ 3 connectors (USB Type-C™ ports, with USB 3.2 Gen 2 support)
  3. 1 x HDMI port
  4. 2 x SMA antenna connectors (2T2R)
  5. 2 x USB 3.2 Gen 2 Type-A ports (red)
  6. 4 x USB 3.2 Gen 1 ports
  7. 2 x USB 2.0/1.1 ports
  8. 2 x RJ-45 ports
  9. 1 x optical S/PDIF Out connector
  10. 5 x audio jacks
I/O Controller iTE I/O Controller Chip
H/W Monitoring Voltage detection
Temperature detection
Fan speed detection
Water cooling flow rate detection
Overheating warning
Fan fail warning
Fan speed control
* Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
BIOS
  1. 1 x 256 Mbit flash
  2. Use of licensed AMI UEFI BIOS
  3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
  1. Support for APP Center
    * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
    @BIOS
    EasyTune
    Fast Boot
    Game Boost
    ON/OFF Charge
    RGB Fusion
    Smart Backup
    System Information Viewer
    USB DAC-UP 2
  2. Support for Q-Flash Plus
  3. Support for Q-Flash
  4. Support for Xpress Install
Bundled Software Norton Internet Security (OEM version)
cFosSpeed
Operating System Support for Windows 10 64-bit
Form Factor ATX Form Factor; 30.5cm x 24.4cm
Remark
  1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
  2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.

Patice 1200 socket
Čipová sada W480
