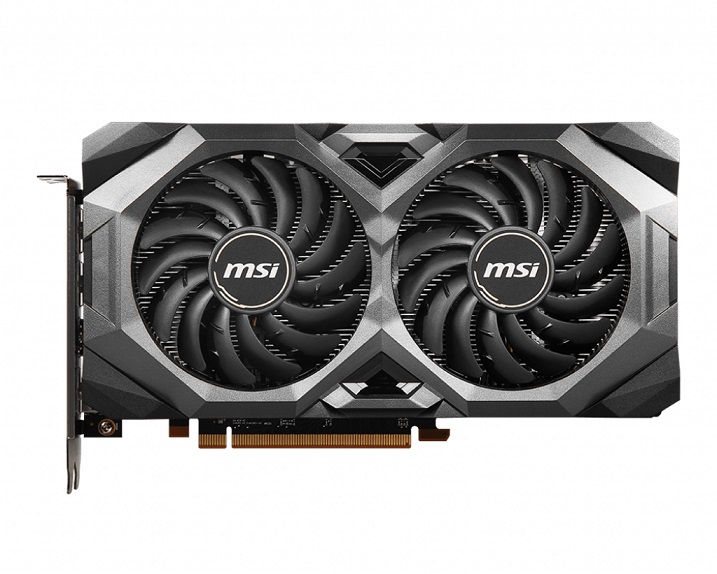

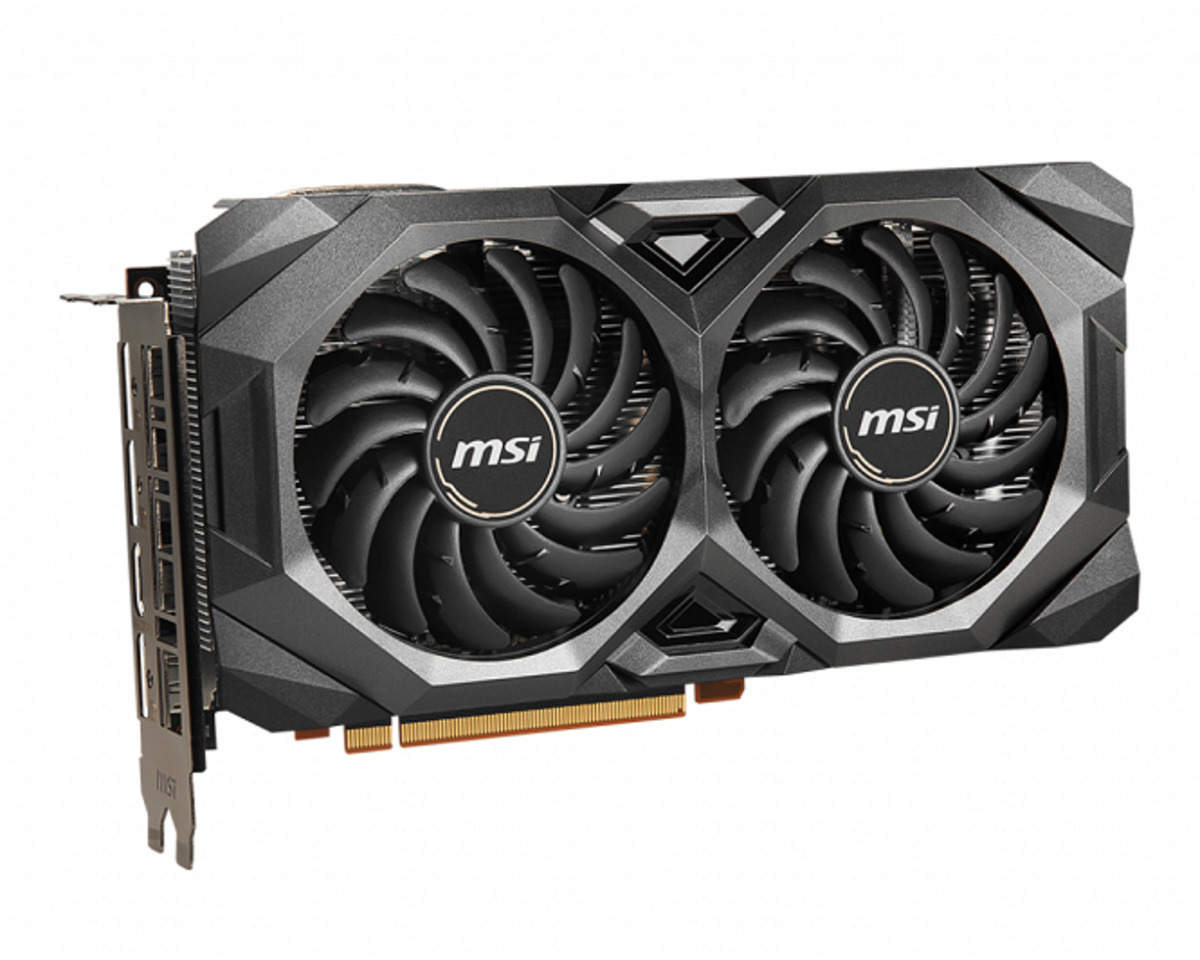

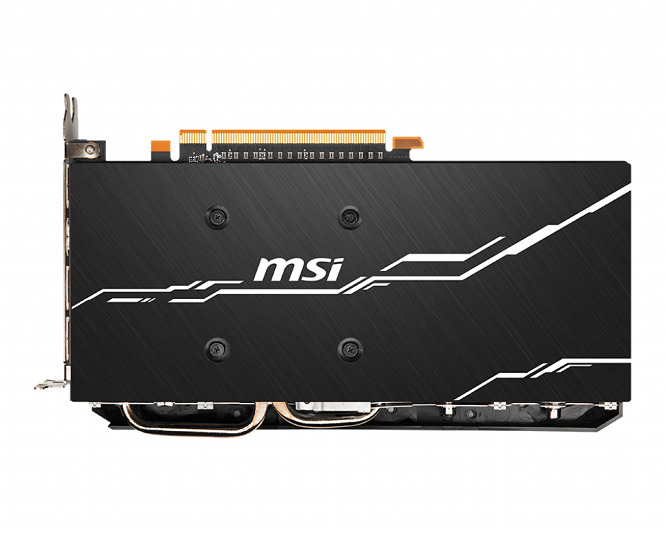

MSI Radeon RX 5700 XT MECH OC

Core/Memory
•Boost Clock / Game Clock* / Base Clock / Memory Speed
Up to 1925 MHz / Up to 1815 MHz / 1670 MHz /14Gbps
•8GB GDDR6

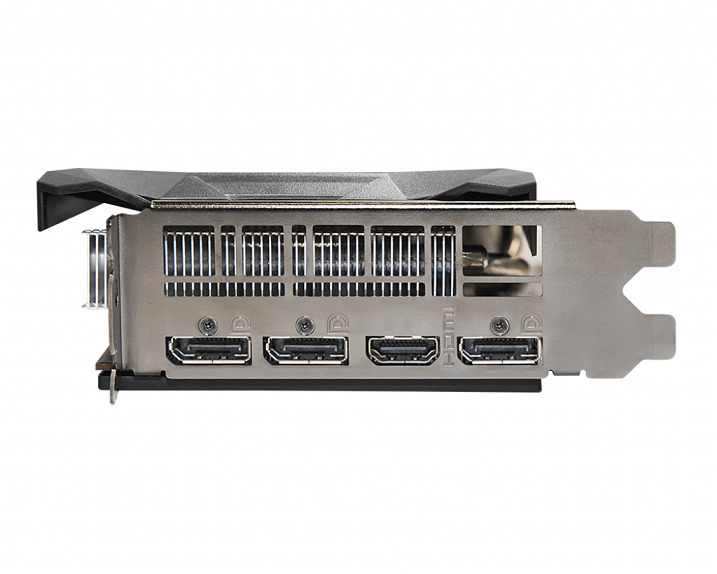

•DisplayPort x 3 / HDMI x 1

TORX Fan 3.0
•Dispersion fan blade: Steep curved blade accelerating the airflow
•Traditional fan blade: Provides steady airflow to massive heat sink below

Afterburner Overclocking Utility
•Kombustor: The latest DirectX versions benchmark supporting.
•Predator: In-game video recording.

AMD Radeon FreeSync™
•Synchronizes the display refresh to your Radeon RX Series GPU for the fast, smooth gaming.

* 'Game Clock’ is the expected GPU clock when running typical gaming applications, set to typical TGP (Total Graphics Power). Actual individual game clock results may vary.

Model Name
Graphics Processing Unit
Interface
Cores
Core Clocks
Memory Speed
Memory
Memory Bus
Output
HDCP Support
Power consumption
Power connectors
Recommended PSU
Card Dimension(mm)
Weight (Card / Package)
DirectX Version Support
OpenGL Version Support
Multi-GPU Technology
Maximum Displays
VR Ready
Digital Maximum Resolution






Radeon RX 5700 XT MECH OC


Radeon™ RX 5700 XT


PCI Express 4.0


2560 Units


Boost: Up to 1925 MHzGame: Up to 1815 MHzBase: 1670 MHz(Game Clock is the expected GPU clock when running typical gaming applications, set to typical TGP (Total Graphics Power). Actual individual game clock results may vary.)


14Gbps


8GB GDDR6


256-bit


DisplayPort x 3 (v1.4) / HDMI 2.0b x 1


Y


225 W


8-pin x 1+ 6-pin x 1


750 W


232 x 126 x 46 mm


794g / 1237g


12


4.6


Y (Bridgeless)(DX12)


4


Y


7680x4320
