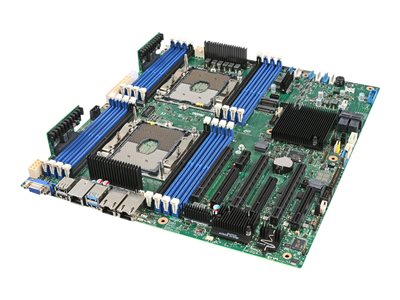

Intel Server Board S2600STBR - Základní deska - SSI EEB - Socket P - 2 Podpora CPU - C624 Čipová sada - USB 3.0 - 2 x 10 Gigabit LAN

Serverový konfigurátor

Essentials Product Collection Intel® Server Board S2600ST Family Code Name Products formerly Sawtooth Status Launched Launch Date Q3'17 Expected Discontinuance 2H'20 Limited 3-year Warranty Yes Extended Warranty Available for Purchase (Select Countries) Yes Additional Extended Warranty Details Dual Processor Board Extended Warranty # of QPI Links 2 Compatible Product Series Intel® Xeon® Scalable Processors Board Form Factor SSI EEB (12 x 13 in) Chassis Form Factor Rack or Pedestal Socket Socket P Integrated Systems Available No Integrated BMC with IPMI IPMI 2.0 with OEM extensions Rack-Friendly Board Yes TDP 205 W Included Items (1) Intel® Server Board S2600STB. (2) SATA cables 880.00mm (1) IO shield (1) Protective insulator (1) Configuration label (sticker to be added to chassis) Recommended Customer Price N/A Board Chipset Intel® C624 Chipset Target Market Cloud/Datacenter Supplemental Information Embedded Options Available No Description A standard form factor server board supporting two Intel® Xeon® Scalable Processors, up to 205 W TDP, 16 DIMMs, and Dual 10GBase-T ports. Additional Information URL View now Memory Specifications Memory Types DDR4 ECC RDIMM/LRDIMM 2133/2400/2666 Max # of Memory Channels 12 Max # of DIMMs 16 ECC Memory Supported ‡ Yes Processor Graphics Integrated Graphics ‡ No Graphics Output VGA Expansion Options PCI Express Revision 3.0 Max # of PCI Express Lanes 96 PCIe x8 Gen 3 3 PCIe x16 Gen 3 3 PCIe OCuLink Connectors (NVMe support) 4 I/O Specifications # of USB Ports 7 USB Revision 2.0 & 3.0 Total # of SATA Ports 10 RAID Configuration SW RAID 0/1/10 (5 optional) # of Serial Ports 1 # of LAN Ports 2 Integrated LAN 2x 10GbE Firewire No Integrated SAS Ports 0 Integrated InfiniBand* No Package Specifications Max CPU Configuration 2 Low Halogen Options Available See MDDS Advanced Technologies Intel® Optane™ Memory Supported ‡ Yes Intel® Virtualization Technology for Directed I/O (VT-d) ‡ Yes Intel® Remote Management Module Support Yes Intel® Node Manager Yes Intel® Quick Resume Technology No Intel® Quiet System Technology No Intel® HD Audio Technology No Intel® Rapid Storage Technology enterprise Yes Intel® Fast Memory Access Yes Intel® Flex Memory Access Yes Intel® I/O Acceleration Technology Yes Intel® Advanced Management Technology Yes Intel® Server Customization Technology Yes Intel® Build Assurance Technology Yes Intel® Efficient Power Technology Yes Intel® Quiet Thermal Technology Yes Intel® Transparent Supply Chain TPM Version 2.0 Security & Reliability Intel® AES New Instructions Yes
